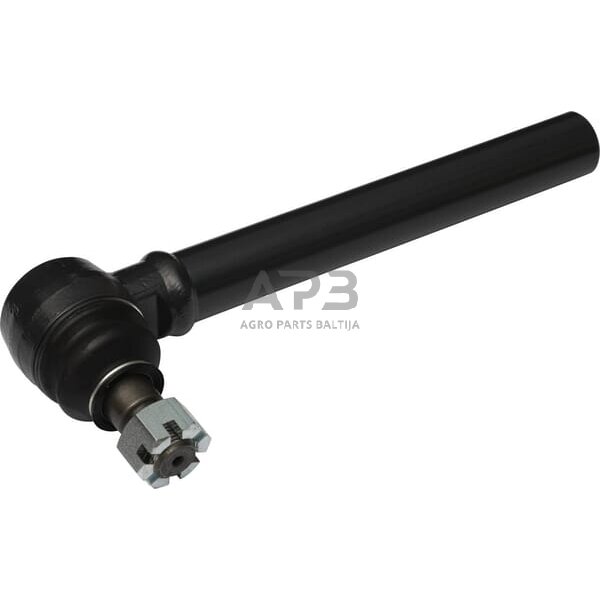

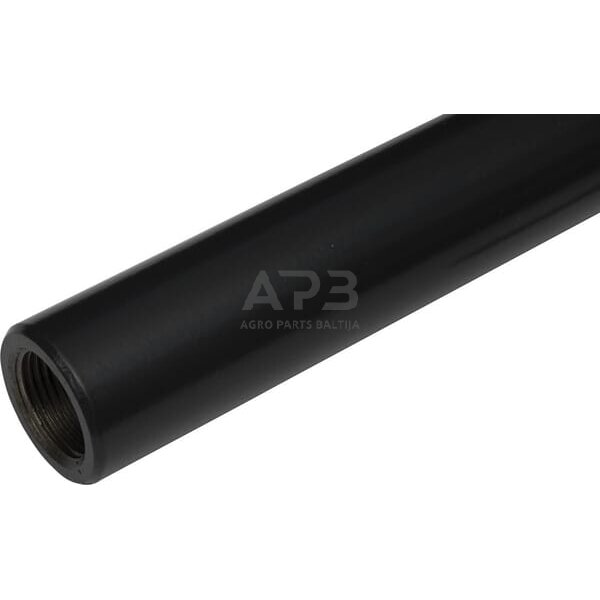

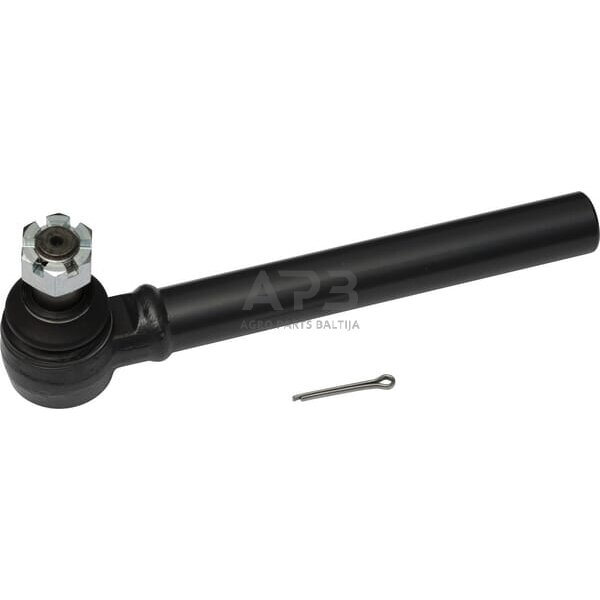

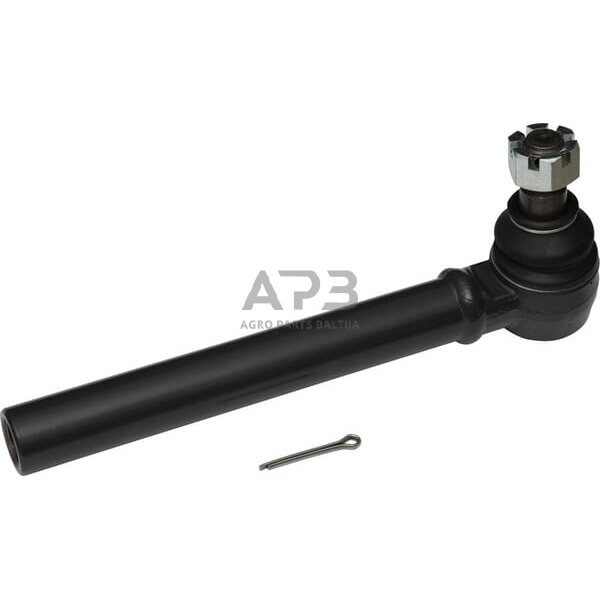

Vairo traukė SHP568KR
Vairo traukė SHP568KR

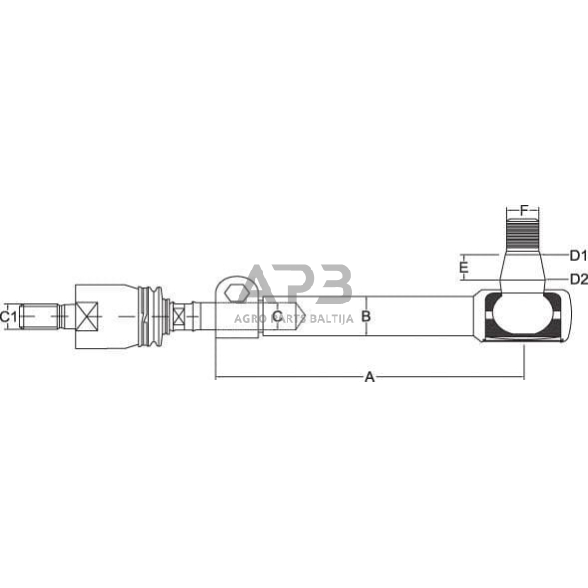

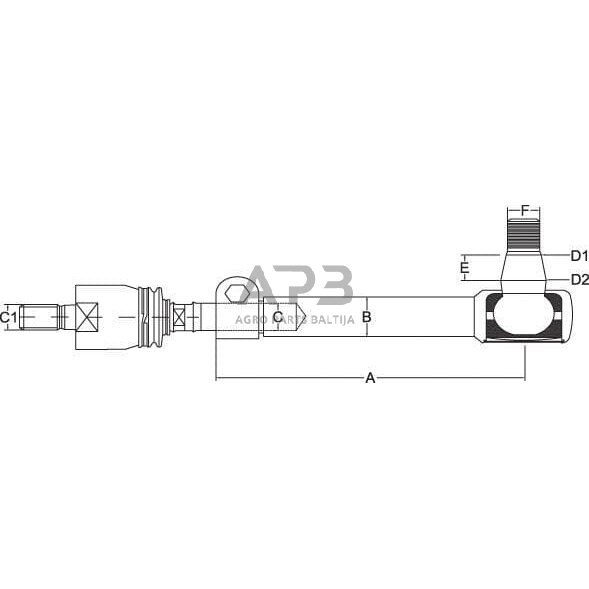

Kodas: 840181Kaina 54.93 € su PVMC Thread diameter - rod side M20
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 19.5 mm
D2 Max. connection diameter 21.5 mm
E End cone length 20 mm
A Working length 240 mm
Thread length - rod side 50 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 49 mm
B Outside rod diameter 28 mmPrekiniam ženkluiUniversalus-
Part number SHP568KR
EAN8719774460614
Unit Each
C Thread diameter - rod side M20
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 19.5 mm
D2 Max. connection diameter 21.5 mm
E End cone length 20 mm
A Working length 240 mm
Thread length - rod side 50 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 49 mm
B Outside rod diameter 28 mm
Curved No
F/C1 Thread pitch- end side 1.50 mm
F/C1 Thread diameter - end side M18
F/C1 Thread direction - end side Right
Thread length - end side 23 mm
F/C1 Thread type - end side Metric Susijusios prekės
