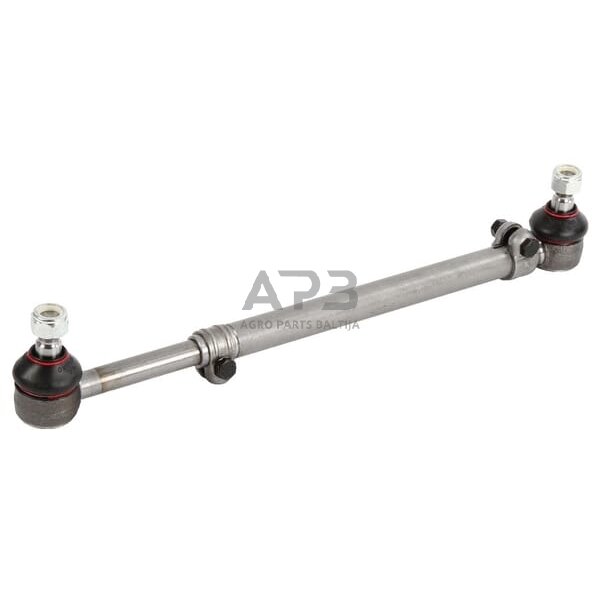

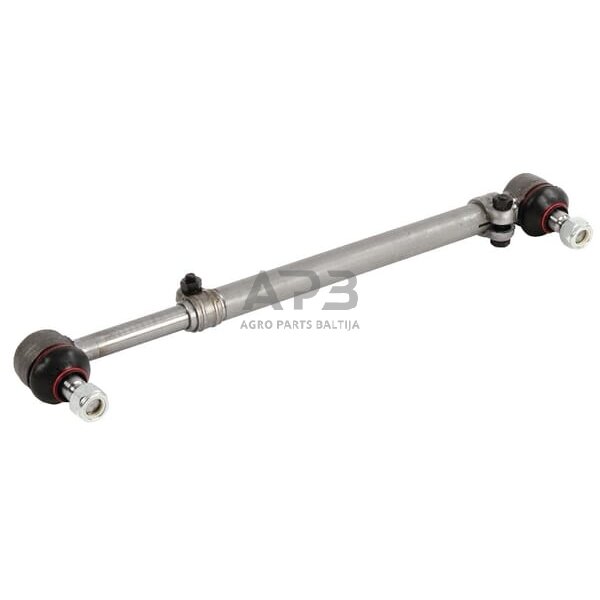

  • Vairo traukė SHP438KR

    Kodas: 840706

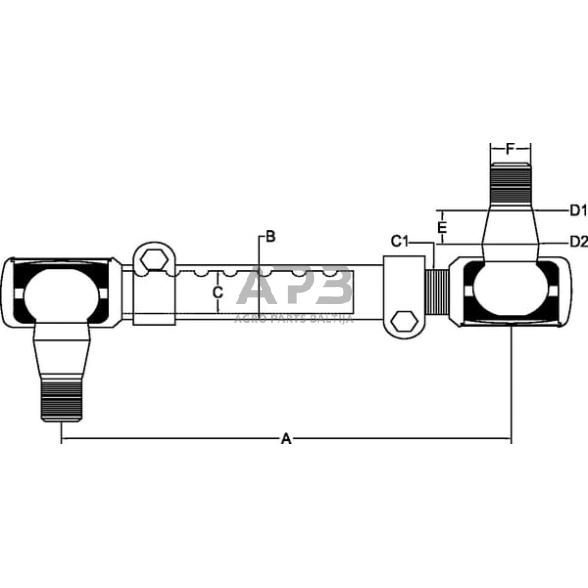

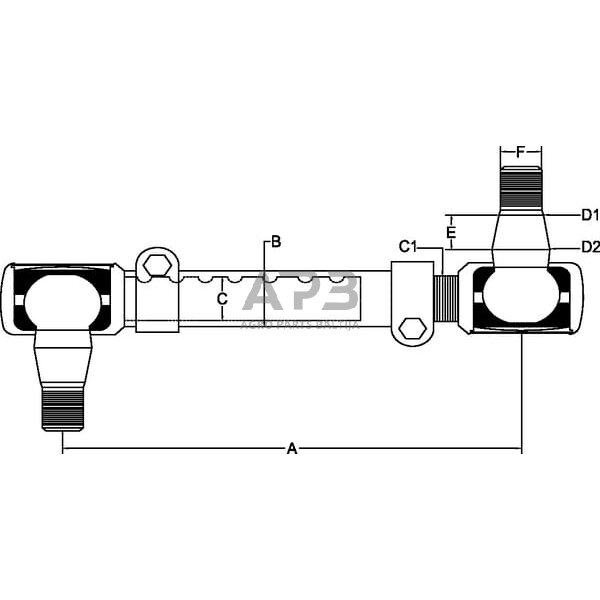

    D1 Min. connection diameter 19.9 mm
    D2 Max. connection diameter 22.1 mm
    E End cone length 24 mm
    A Working length range 420-650 mm
    Total length 428 mm
    B Outside rod diameter 30 mm
  • Part number SHP438KR
    EAN8716106838554
    Unit Each
    Properties Adjustable in stages
    C/C1 Thread diameter - rod side M22 M24
    C/C1 Thread pitch - rod side 1.50 mm
    D1 Min. connection diameter 19.9 mm
    D2 Max. connection diameter 22.1 mm
    E End cone length 24 mm
    Thread diameter - end side (wheel) (metric)M18
    Pitch of thread - end side (wheel) (mm)1.50 mm
    A Working length range 420-650 mm
    Total length 428 mm
    C/C1 Thread type - rod side Metric
    C/C1Thread direction - rod side Right
    Thread length - end side (wheel) (mm)22.5 mm
    Thread type - end side (wheel)Metric
    Thread direction - end side (wheel)Right
    Head width 30 mm
    B Outside rod diameter 30 mm
