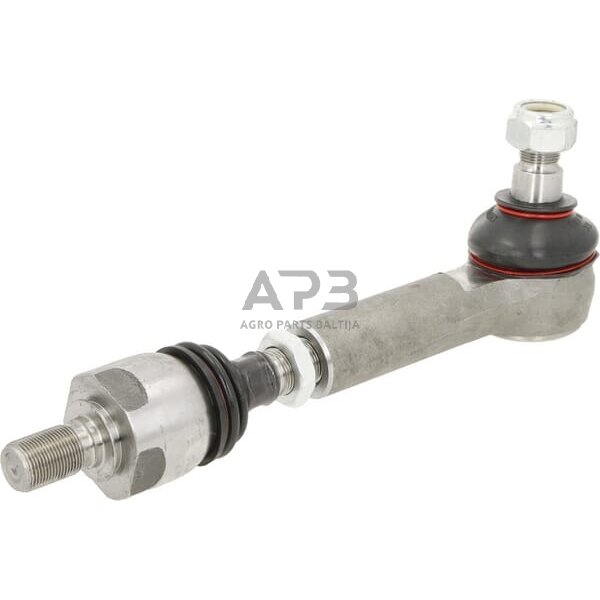

Vairo traukė SHP321KR
Vairo traukė SHP321KR

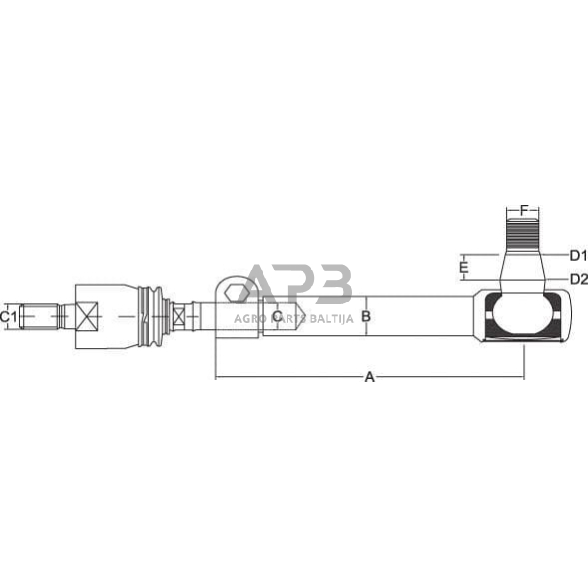

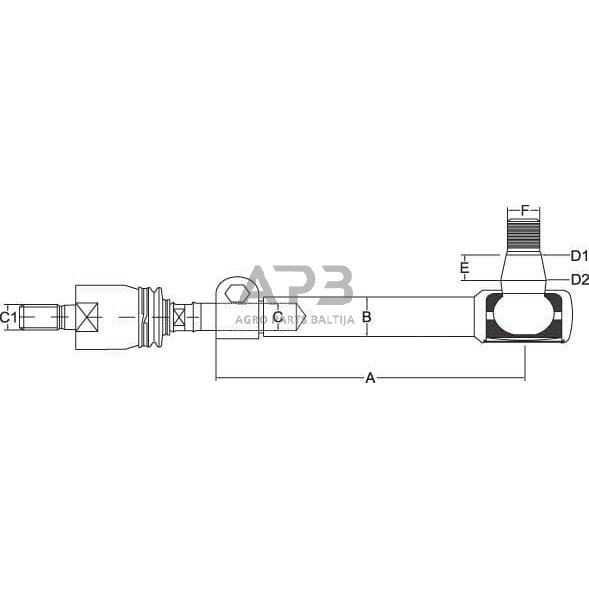

Kodas: 840188Kaina 34.42 € su PVMC Thread diameter - rod side M20
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 18.1 mm
D2 Max. connection diameter 20.4 mm
E End cone length 23 mm
A Working length 80 mm
Thread length - rod side 55 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 44 mm
B Outside rod diameter 44 mmPrekiniam ženkluiUniversalus-
Part number SHP321KR
EAN8719493003765
Unit Each
C Thread diameter - rod side M20
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 18.1 mm
D2 Max. connection diameter 20.4 mm
E End cone length 23 mm
A Working length 80 mm
Thread length - rod side 55 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 44 mm
B Outside rod diameter 44 mm
Curved No
F/C1 Thread pitch- end side 1.50 mm
F/C1 Thread diameter - end side M16
F/C1 Thread direction - end side Right
Thread length - end side 22 mm
F/C1 Thread type - end side Metric Susijusios prekės
