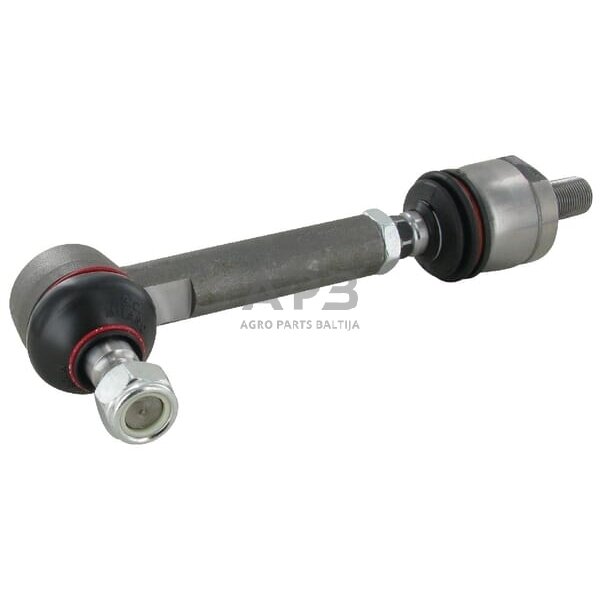

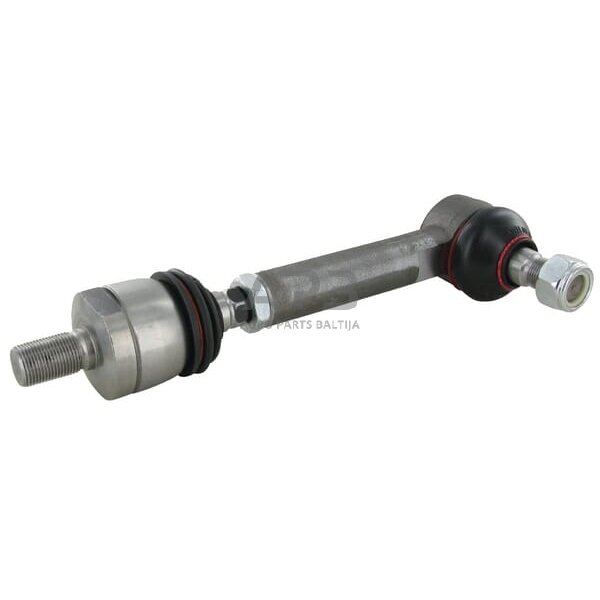

Vairo traukė SHP034KR
Vairo traukė SHP034KR

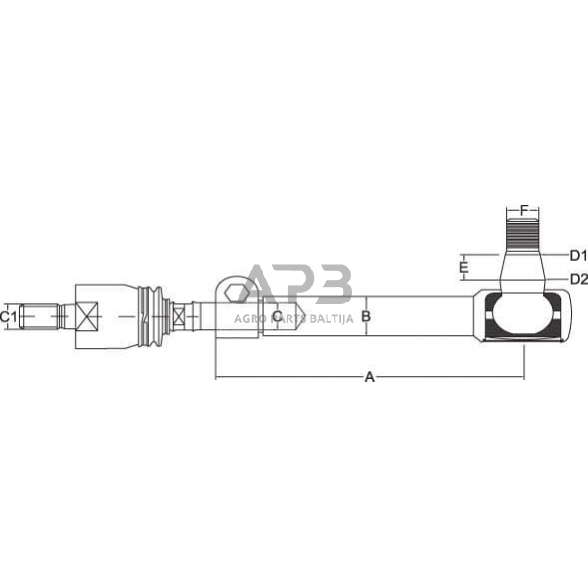

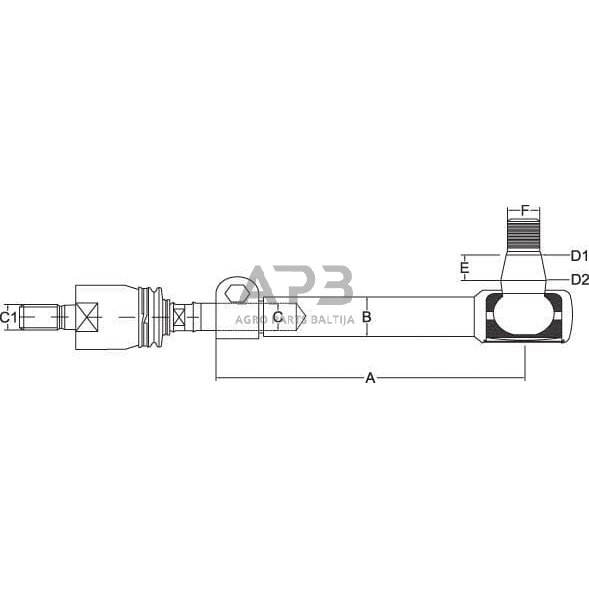

Kodas: 840255Kaina 56.49 € su PVMC Thread diameter - rod side M18
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 19.9 mm
D2 Max. connection diameter 22.3 mm
E End cone length 23.5 mm
A Working length 142 mm
Total length 142 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 28 mm
B Outside rod diameter 28 mmPrekiniam ženkluiUniversalus-
Part number SHP034KR
EAN8716106431427
Unit Each
C Thread diameter - rod side M18
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 19.9 mm
D2 Max. connection diameter 22.3 mm
E End cone length 23.5 mm
A Working length 142 mm
Total length 142 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 28 mm
B Outside rod diameter 28 mm
F/C1 Thread diameter - end side M18 M20
F/C1 Thread pitch- end side 1.50 mm
Thread length - end side 23.5 mm
F/C1 Thread type - end side Metric Susijusios prekės
Vairo traukė SHP007KRKodas: 840254C Thread diameter - rod side M24
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 23.5 mm
D2 Max. connection diameter 26.5 mm
E End cone length 30 mm
A Working length 263 mm
Total length 384 mm
Thread length - rod side 70 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 58 mm
B Outside rod diameter 34 mm
112.55 € su PVM
Vairo traukė SHP491KRKodas: 840253C Thread diameter - rod side M28
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 28.9 mm
D2 Max. connection diameter 32.3 mm
E End cone length 35 mm
A Working length 275 mm
Total length 414 mm
Thread length - rod side 80 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 66 mm
B Outside rod diameter 40 mm
146.37 € su PVM
Vairo traukė SHP671KRKodas: 840251C Thread diameter - rod side M24
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 23.5 mm
D2 Max. connection diameter 26.5 mm
E End cone length 30 mm
A Working length 455 mm
Total length 570 mm
Thread length - rod side 70 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 58 mm
B Outside rod diameter 36 mm
86.39 € su PVM
Vairo traukė SHP328KRKodas: 840250C Thread diameter - rod side M28
C Thread pitch - rod side 1.50 mm
D1 Min. connection diameter 28.1 mm
D2 Max. connection diameter 32.45 mm
E End cone length 37.5 mm
A Working length 240 mm
Total length 240 mm
C Thread type - rod side Metric
C Thread direction - rod side Right
Head width 40 mm
B Outside rod diameter 40 mm
178.93 € su PVM
