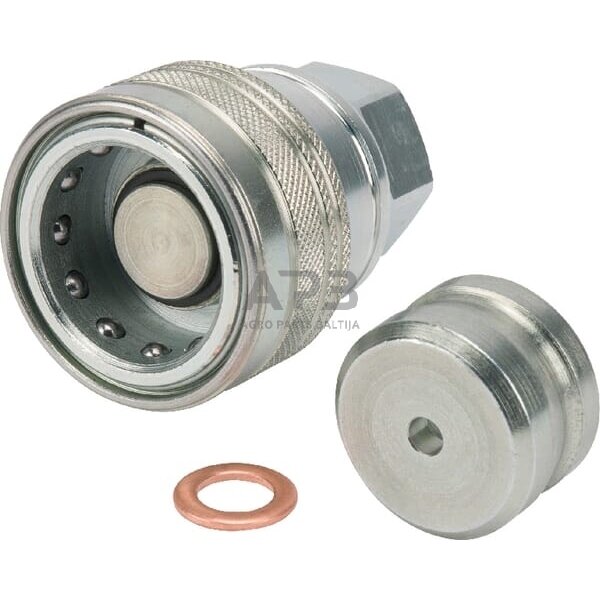

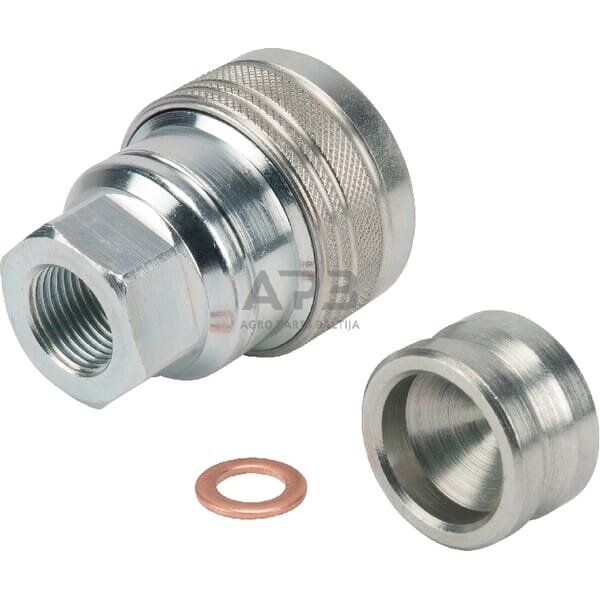

Stabdžių sistemos įvorė Faster VF1815F
Stabdžių sistemos įvorė Faster VF1815F
Kodas: 841180Kaina 30.58 € su PVMOutside diameter 44 mm
Total length 54.5 mmPrekiniam ženkluiFaster-
Part number VF1815F
EAN8716106440702
Unit Each
Pros Low leakage
Product details No air pockets during coupling Cannot be connected under pressure Coupling must be screwed as tight as possible Screw coupling with special flat valve
Shape Straight - 2 connection sides
Body size 3/8 Inch
Body size 10 mm
Connection no 1 type Quick coupling
Connection no 1 type - male/female Female
Connection no 1 diameter 44 mm
Connection 2, type Thread
Connection 2, type - male/female Female
Connection 2, Thread diameter M18
Connection 2, thread pitch 1.50 mm
Connection 2, thread type Metric
ISO standard 5676
Flow rate at 2 bar 40 l/min
Outside diameter 44 mm
Total length 54.5 mm
Material Steel
Surface treatment White passivated
Working pressure 150 BAR
Max working temperature 125 °C
Min. working temperature -25 °C
Seal material Nitrile rubber [NBR] Teflon (PTFE) Susijusios prekės
