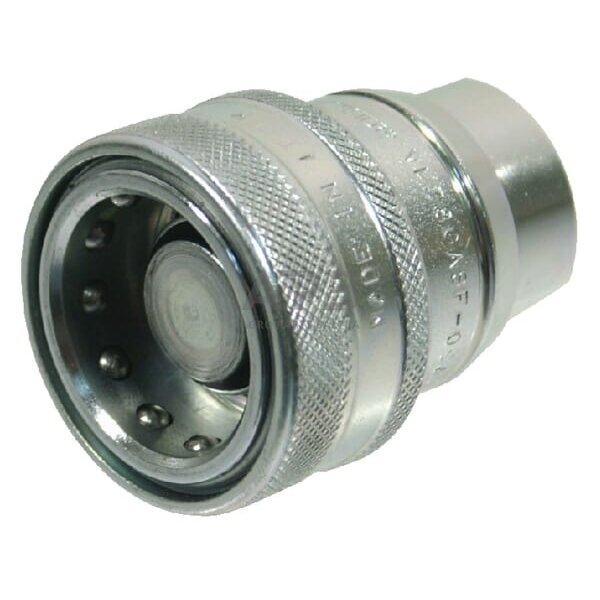

Part number VF012GASF
EAN
Unit Each
Pros Low leakage
Product details No air pockets during coupling Cannot be connected under pressure Coupling must be screwed as tight as possible Screw coupling with special flat valve
Long description Application range : Hydraulic brake systems Mineral oil-based fluids Benefits: Low leakage Details: Screw coupling with special flat valve Properties: No air pockets duri
Shape Straight - 2 connection sides
Body size 3/8 Inch
Body size 10 mm
Connection no 1 type Quick coupling
Connection no 1 type - male/female Female
Connection no 1 diameter 44 mm

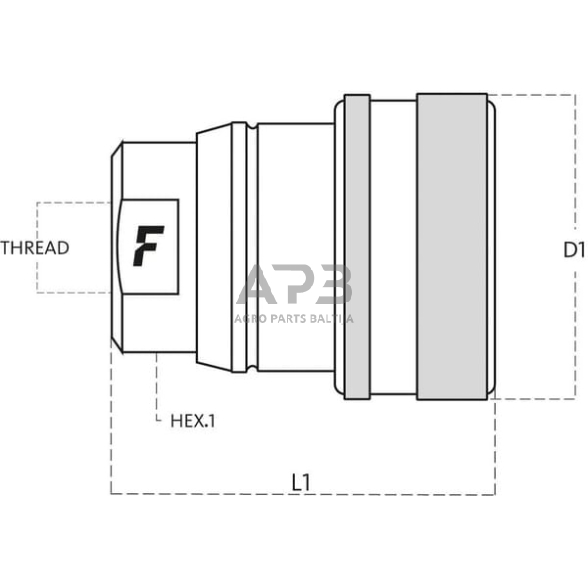

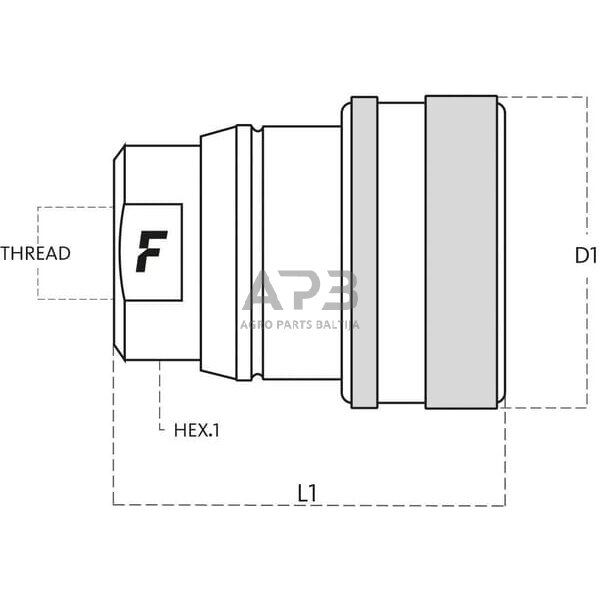

THREADConnection no 1 Thread diameter 1/2 Inch
Connection no 1 thread type BSP
Connection no 1 thread type code0
Connection no 1 hex size 1.06 Inch
HEX.1 Connection no 1 hex size 27 mm
Connection 2, type Thread
Connection 2, type - male/female Female
Connection 2, Thread diameter 1/2 Inch
Connection 2, threads per inch 14
Connection 2, thread type BSPP
Connectable under pressure No
ISO standard 5676
BS standard 5380
Flow rate at 2 bar 40 l/min
Outside diameter 1.73 Inch
Outside diameter 44 mm
L1 Total length 2.32 Inch
L1 Total length 54.5 mm
Material Steel
Surface treatment White passivated
Working pressure 150 BAR
Max working temperature 125 °C
Min. working temperature -25 °C
Quick connection locking type Radial balls
Quick connection working type Sleeve retraction
Quick disconnection working type Sleeve retraction
Seal material Nitrile rubber [NBR] Teflon (PTFE)
Series VF
Valve type Flat
Weight 379.7 g
