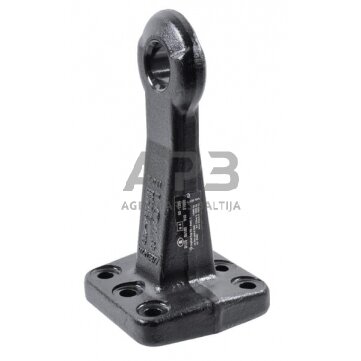

Priekabos sukabinimo kilpa su flanšu Bernhofer Gesenkschmiede 30000802
Priekabos sukabinimo kilpa su flanšu Bernhofer Gesenkschmiede 30000802
Kodas: 844211Kaina 185.46 € su PVMTowing eye inside diameter (main hole) 40 mm
Thread diameter M16

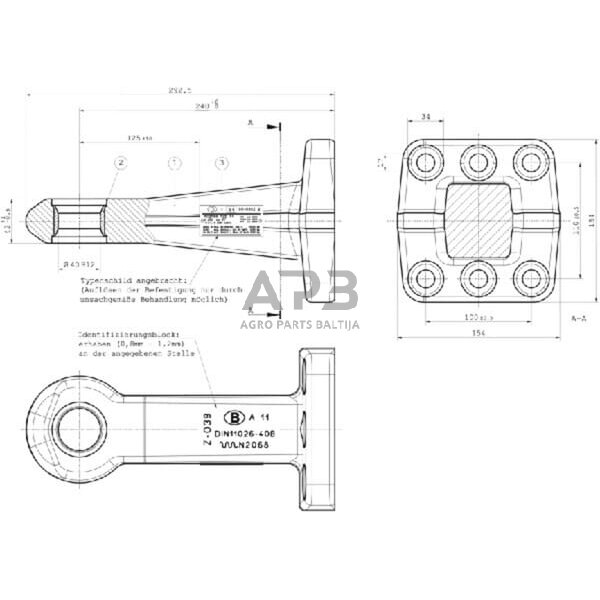

C Min. mounting holes distance 100 mm
B Min. mounting holes distance 110 mm
Total length 240 mmPrekiniam ženkluiBernhofer Gesenkschmiede-
Part number 30000802
EAN
Unit Each
Long description Hitch eye with flange 100 x 110 DIN74054 6 holes
Application range Mainly for use on heavy agricultural and forestry trailers
Properties DIN 11026/ISO 5692-2 ABG no.: N 2068 EEC no.: e4* 94/20*0962*00 Material : 42 CrMo 4V, 1.7225 Surface: cataphoretic coated Permissible support load: 2500 kg to 40 km/h Permissible support load: 2000 kg over 40 km/h
Max. vertical load 2000 kg
Towing eye inside diameter (main hole) 40 mm

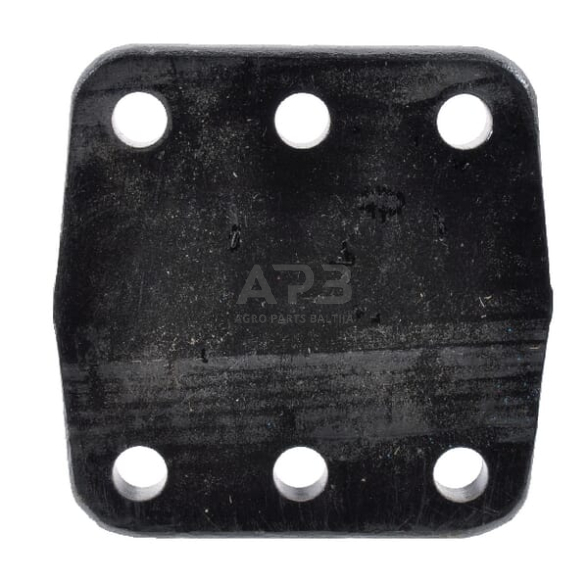

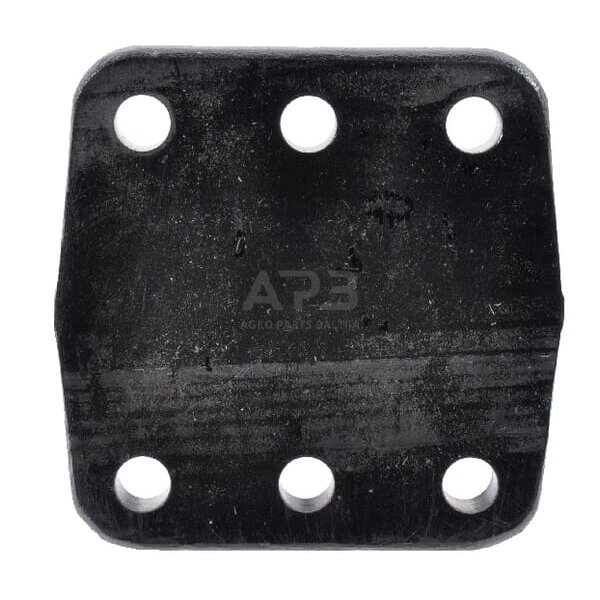

Consists ofZ-039 with type plate With non-slotted bushing, Ø 40 mm 6-hole flange, version A
Mounting holes number 6
Thread diameter M16
C Min. mounting holes distance 100 mm
B Min. mounting holes distance 110 mm
Total length 240 mm
Type code Z-039 Susijusios prekės
