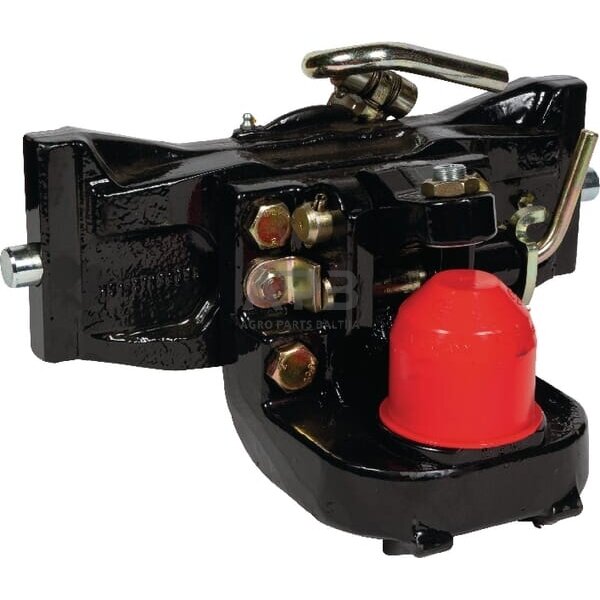

Priekabos prikabinimas su rutuliu Sauermann HS1251K390
Priekabos prikabinimas su rutuliu Sauermann HS1251K390
Kodas: 844332Kaina 1168.19 € su PVMB Track width 390 mm
Track thickness 31.4 mm
D1 Locking pin diameter 25 mm
Pull pin diameter 80 mmPrekiniam ženkluiSauermann-
Part number HS1251K390
EAN
Unit Each
Application range Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Properties Optional retrofit with forced steering (right, left, both sides)
Benefits Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life

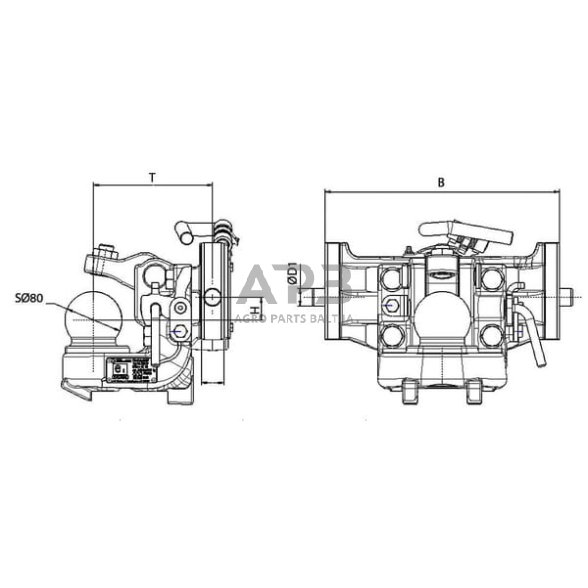

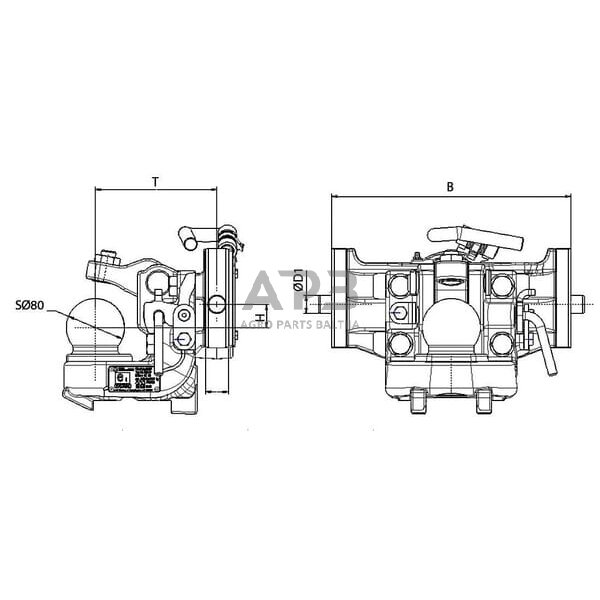

B Track width 390 mm
Track thickness 31.4 mm
D1 Locking pin diameter 25 mm
Pull pin diameter 80 mm
Max. pulling load 92 kN
Max. vertical load 3000 kg
Colour Black
Type code HS1251-K-390
ManufacturerSauermann Susijusios prekės
Priekabos prikabinimas rankinis Sauermann HS1450Kodas: 844381B Track width 330 mm
A Track thickness 31.4 mm
D1 Locking pin diameter 25 mm
628.80 € su PVM
Priekabos prikabinimas su rutuliu 330mm Sauermann HS1251KKodas: 844336Track width 330 mm
Track thickness 32 mm
Locking pin diameter 25 mm
Pull pin diameter 80 mm
984.67 € su PVM
Priekabos prikabinimas su rutuliu 320mm Sauermann HS1250KKodas: 844328Track width 320 mm
Pull pin diameter 80 mm
Thread diameter M18
Min. mounting holes distance 80 mm
Max. mounting holes distance 140 mm
984.67 € su PVM
Priekabos prikabinimas su rutuliu 390mm Sauermann C51698814Kodas: 844323B Track width 390 mm
A Track thickness 31.4 mm
D1 Locking pin diameter 25 mm
1006.10 € su PVM
