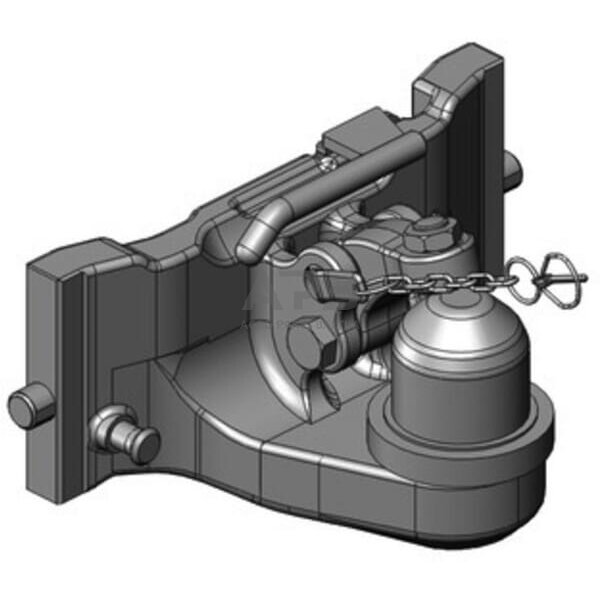

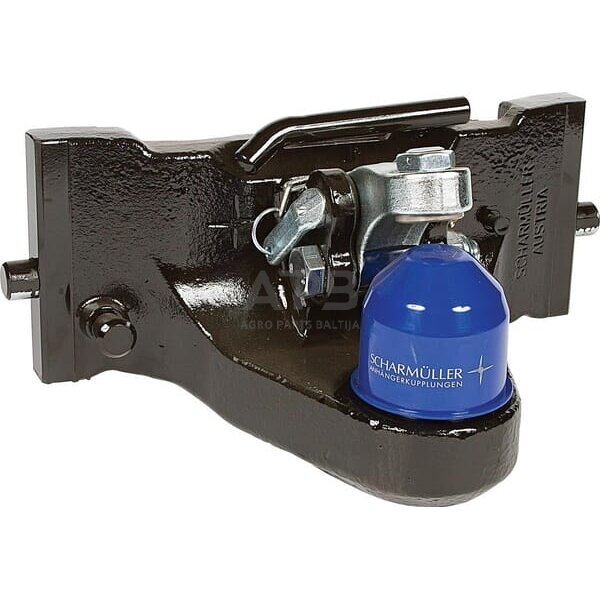

  • Priekabos prikabinimas su rutuliu K80 390mm Scharmüller 05639063A02

    Kodas: 844313
    Track width 390 mm
    Track thickness 32 mm
    Adapter plate height 160 mm
    Locking pin diameter 25 mm
    Working length 170 mm
  • Part number 05639063A02
    EAN
    Unit Each
    Application range Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
    Properties Optional retrofit with forced steering (right, left, both sides)
    Benefits Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
    Track width 390 mm
    Track thickness 32 mm
    Adapter plate height 160 mm
    Locking pin diameter 25 mm
    Max. pulling load 97.1 kN
    Max. vertical load 3000 kg
    Colour Black
    Type K80® Manual
    Working length 170 mm
    Extra info Height Adjustable with Grabhandle
