Part number LA10210
EAN8719732938346
Unit Each

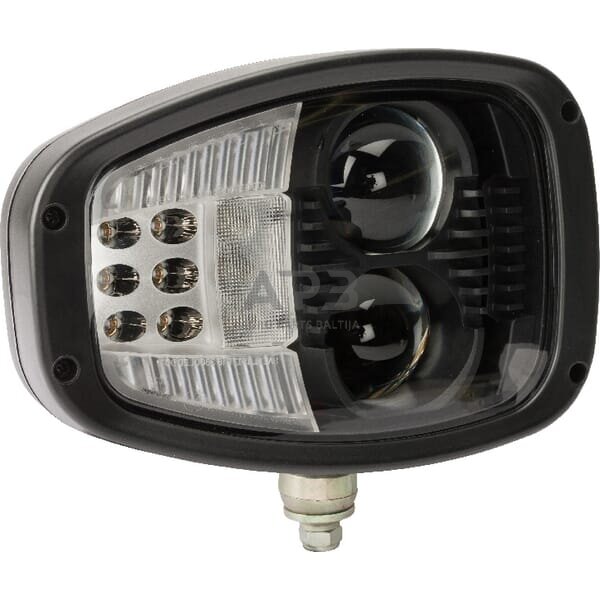

Product details LED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly
Nominal voltage 12 V 24 V
Nominal voltage range 12-24 V
Bulbs technology LED
Shape Rectangular
Function High beam Low beam Direction indicator Position light Daytime running light Backlight Vehicle Headlights
Light type Dual beam
Power 22 W32 W

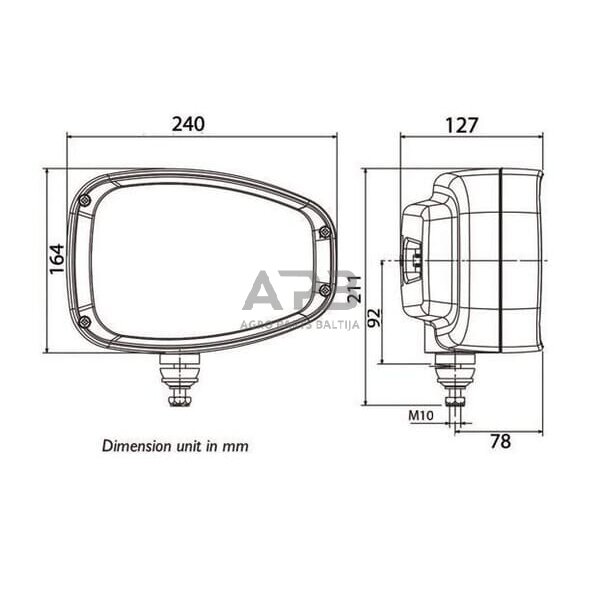

Width 240 mm
Height 164 mm
Length (depth) 127 mm
Mounting position Front Right
Light colour White Orange
Application Universal Tractor Truck Construction vehicle
Suitable for machine/vehicle brand Universal
Colour temperature 6000 K

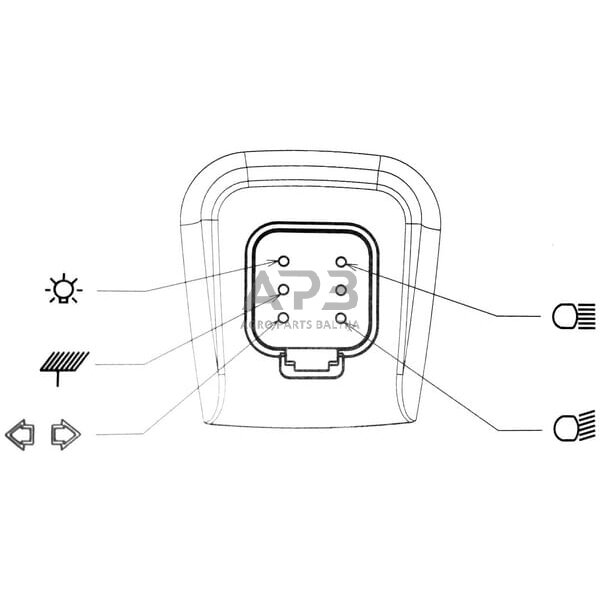

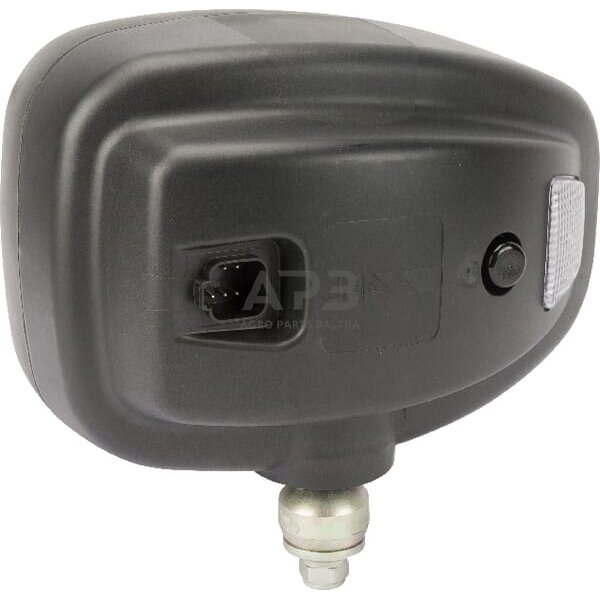

Plug type Deutsch 6-pin
ECE standard R112 R6 R7
ISO standard13766 14982 12895
CISPR standard25 Class 3
Housing material Aluminium
Lens material Glass
Min working temperature-40 °C
Max working temperature85 °C
Weight 1.95 kg
Shock resistance (G)60
Heated lensYes
Insulation class 69K
