Part number LA104211
EAN8719493113907
Unit Each
Long description This work lamp illuminates your workspace to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in darkness - an investment that really pays.
Pros Extensive ground illumination for use in the field Optimal ambient lighting
Product details LED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly
Nominal voltage 12 V 24 V
Nominal voltage range 10-30 V
Bulbs technology LED
Shape Rectangular
Function Work light
Light type Flood
Power 90 W
Luminous flux 6000 lm

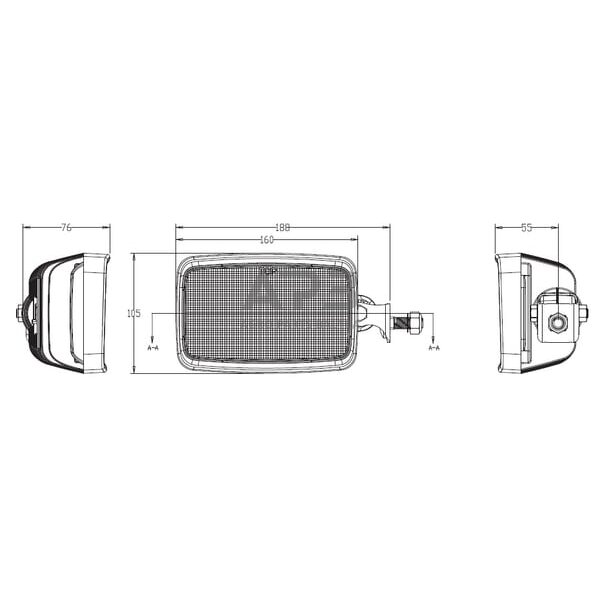

Width 160 mm
Height 105 mm
Length (depth) 76 mm
Mounting position Front Rear Lateral
Mounting type Bolt on
Light colour White
Application Universal Off road Tractor Construction vehicle Truck
Suitable for machine/vehicle brand Case IH Ford New Holland Steyr Valmet Valtra Deutz-Fahr
Beam angle 80 °
Colour temperature 6500 K
Plug type Deutsch 2-pin
Cable length 0.5 m
ECE standard R10
CISPR standard 25 Class 5
Authorisation number UKCA
Number of LED 30
Housing material Aluminium
Housing colour Black
Lens material Polycarbonate
Mounting holes diameter 8.8 mm
Mounting thread diameter M10
Min working temperature -40 °C
Max working temperature 50 °C
Weight 0.85 kg
Insulation class 6K9K
