Part number LA10429
EAN8719493033434
Unit Each

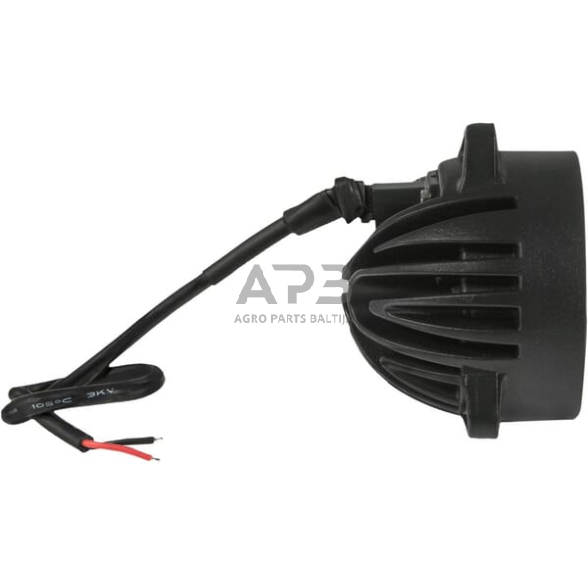

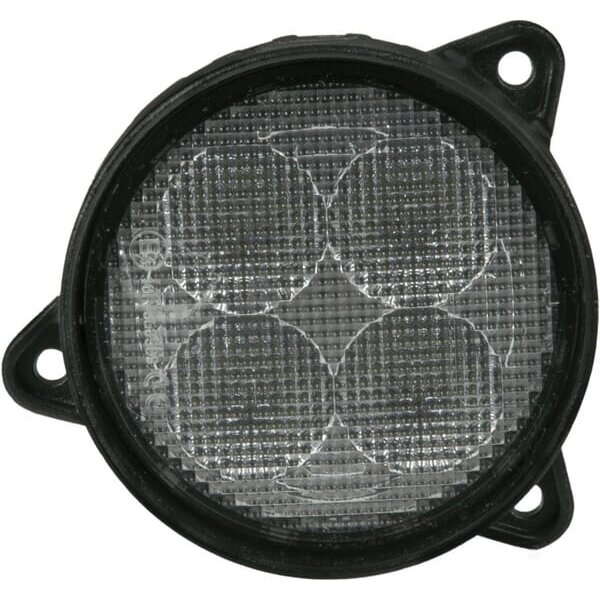

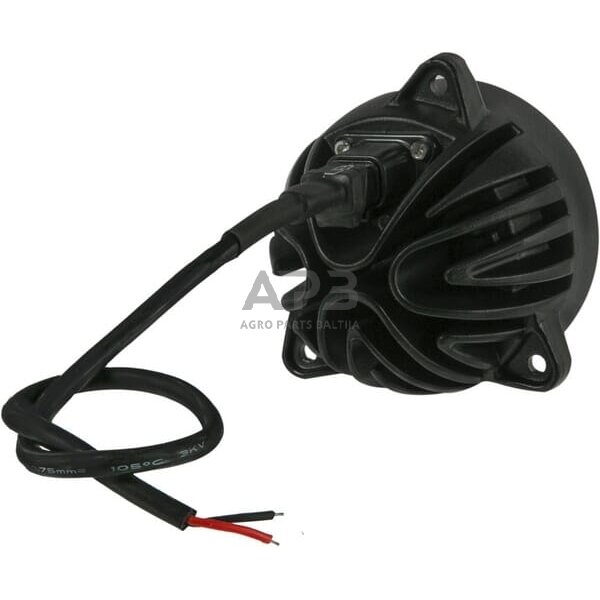

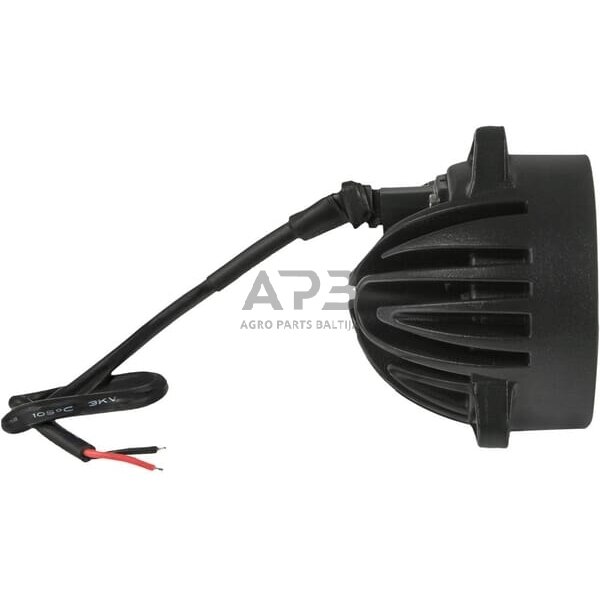

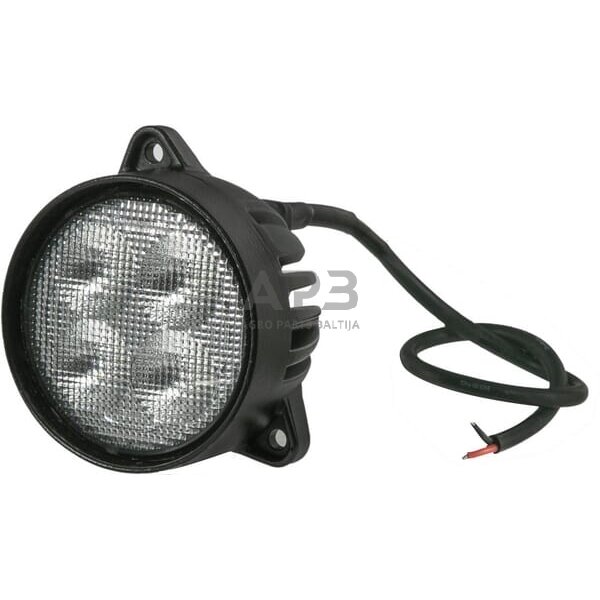

Long description This work lamp illuminates your view to help improve concentration. LED lighting allows powerful machinery to be operated with great accuracy in the dark – an investment that really pays.
Pros Extensive ground illumination for use in the field Optimal ambient lighting
Product details LED lamps are exposed to dirt, fertilisers, road salt, acids and more. For best performance and long life, the lens and cooling fins should be cleaned regularly
Nominal voltage 12 V 24 V
Nominal voltage range 10-30 V
Bulbs technology LED
Shape Round
Function Work light
Light type Flood
Power 40 W
Luminous flux 4800 lm

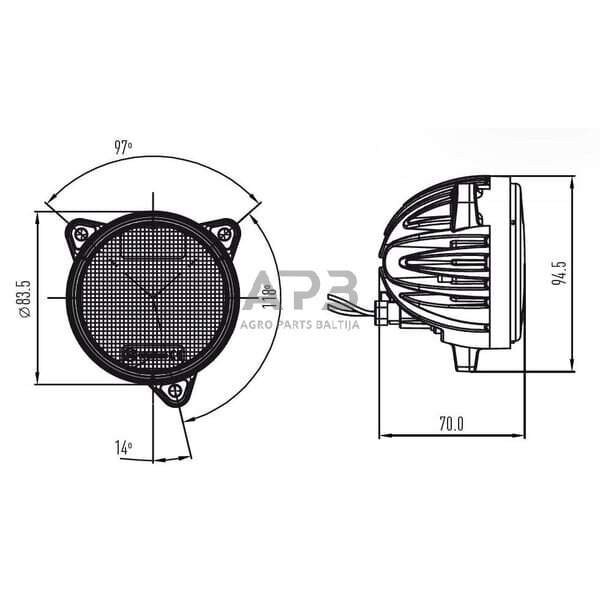

Width 83.5 mm
Height 90 mm
Length (depth) 72 mm
Diameter 83.5 mm
Mounting position Top Front
Light colour White
Application Universal Off road Tractor Construction vehicle Truck
Suitable for machine/vehicle brand Case IH John Deere Massey Ferguson New Holland Steyr
Beam angle 60 °
Colour temperature 6000 K
Plug type Deutsch 2-pin
Cable length 0.2 m
ECE standard R10
CISPR standard25 Class 4
Number of LED 4
Housing material Aluminium
Lens material Polycarbonate
Mounting holes diameter 2.6 mm
Mounting thread diameter M3
Min working temperature -40 °C
Max working temperature 50 °C
Weight 0.15 kg
Insulation class 69K
Extra info LA10429 = LA10428 without plastic housing ( easy to disassemble)
