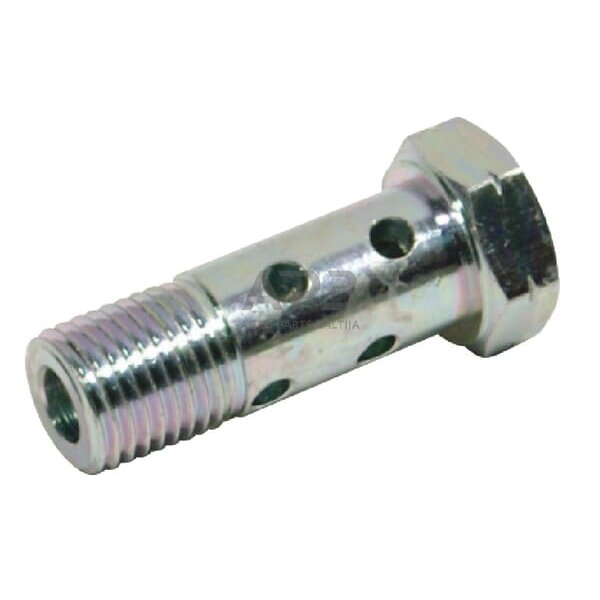

Kuro žarnos varžtas dvigubas M12x1,5 HBM12D
Kuro žarnos varžtas dvigubas M12x1,5 HBM12D
Kodas: 843957Kaina 9.99 € su PVMA Thread diameter M12
L Total length 47.1 mm
Thread pitch 1.50 mm
L1 Length 40.8 mm
B Thread length 13.6 mmPrekiniam ženkluiUniversalus-
Part number HBM12D
EAN8719593044132
Unit Each
Product details Connection: Metric banjo bolt Application : In combination with banjo Material : Steel Seal: Seal ring on banjo Standard: DIN 7643 Surface treatment: Zinc-plated, available in stainless steel on request

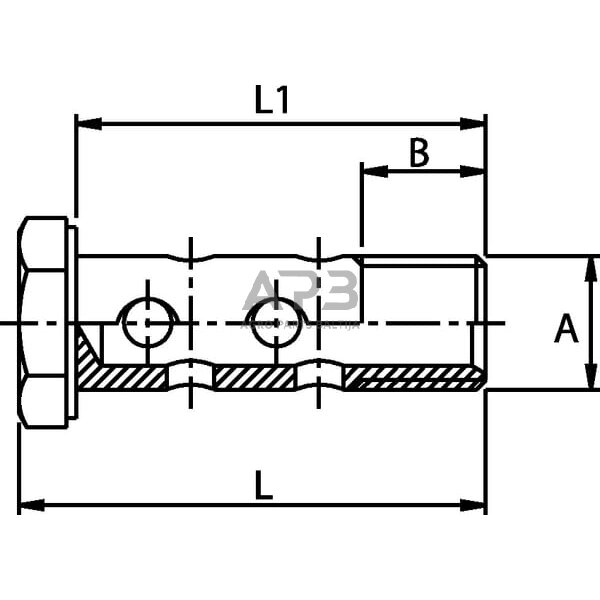

Long description Technical information: Dimension L = overall length
A Thread diameter M12
L Total length 47.1 mm
Thread type Metric
Thread pitch 1.50 mm
L1 Length 40.8 mm
B Thread length 13.6 mm

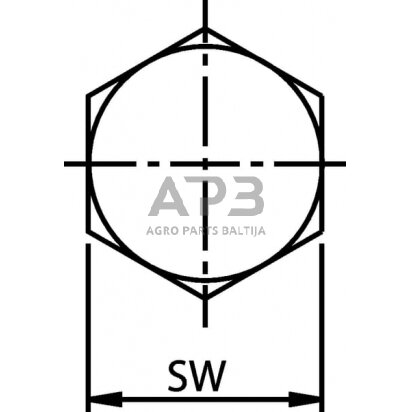

SW Wrench/Spanner size 17.0 mm
Surface treatment Galvanised
Material Steel
DIN standard 7643
Sealing type Sealing ring
Max working pressure 190 BAR Susijusios prekės
Kuro žarnos varžtas dvigubas M10x1 HBM10DKodas: 843959A Thread diameter M10
L Total length 35 mm
Thread pitch 1.00 mm
L1 Length 30.6 mm
B Thread length 10 mm
11.18 € su PVM
Kuro žarnos varžtas dvigubas M18x1,5 HBM18DKodas: 843958A Thread diameter M18
L Total length 65.6 mm
Thread pitch 1.50 mm
L1 Length 57.7 mm
B Thread length 17.5 mm
20.16 € su PVM
Kuro žarnos varžtas dvigubas M16x1,5 HBM16DKodas: 843956A Thread diameter M16
L Total length 57.9 mm
Thread pitch 1.50 mm
L1 Length 50.8 mm
B Thread length 17 mm
11.28 € su PVM
Kuro žarnos varžtas dvigubas M14x1,5 HBM14DKodas: 843955A Thread diameter M14
L Total length 46.3 mm
Thread pitch 1.50 mm
L1 Length 39.7 mm
B Thread length 15.6 mm
8.28 € su PVM
