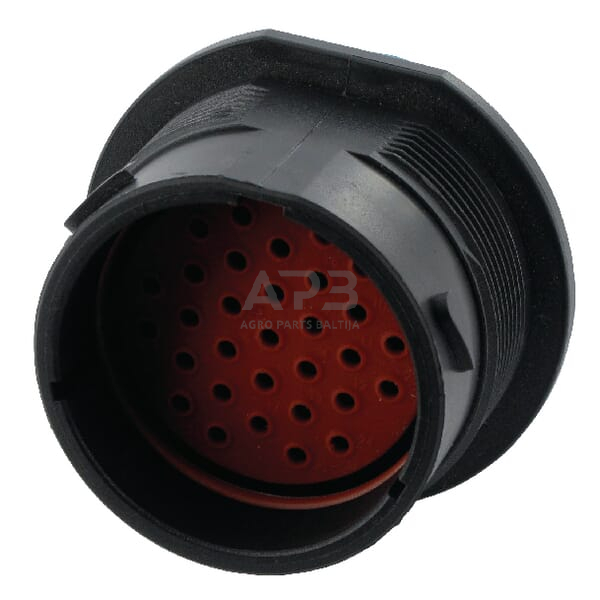

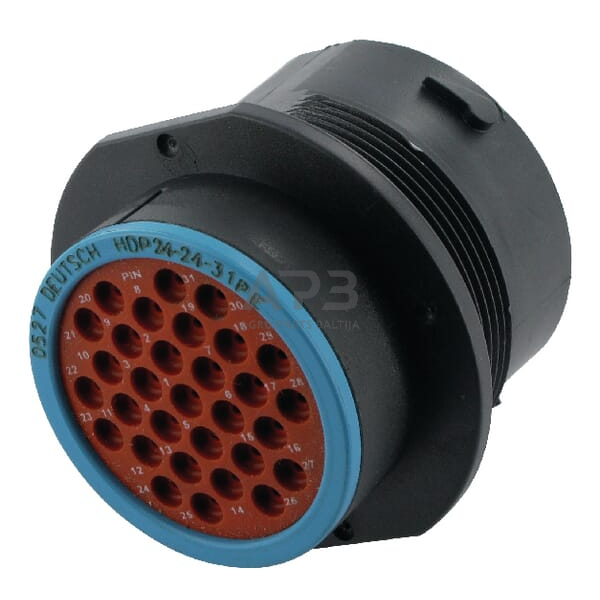

  • Kištuko korpusas Deutsch HDP20, DSHDP242431PE

    Kodas: 853023
    Number of poles 31
  • Part number DSHDP242431PE
    EAN
    Unit Each
    Details Dustproof and waterproof Thermoplastic housing Easy mounting
    Application range As connection plug for electronics under the engine cover, on transmissions or in cabs
    Properties Housing size: Shell 18 & Shell 24 Integrated cable seal Silicone seal
    Technical info HDP20 is the plastic version of HD30
    Benefits Designed specifically for dirty environments Wear-resistant plastic Very user-friendly
    Number of poles 31
    Series HDP
    Consists ofIndividual components (self-assembly plug)
    Cable position type - connection no 1 Standard
    Nominal voltage 250 V
    Nominal voltage range 12-48 V
    Protection class IP6K9K
    Type SH24
    Connection type male/female - connection no 1 Male
    Connection type DS16
    Connection 2, connection type DS16
    Connection 3, connection type DS16
    Min working temperature -55 °C
    Max working temperature 125 °C
    DIN standard 40050
    Housing material Plastic
    Electric category Sensor Signal
    Content in sale unit 1 pcs
