Prekių katalogas

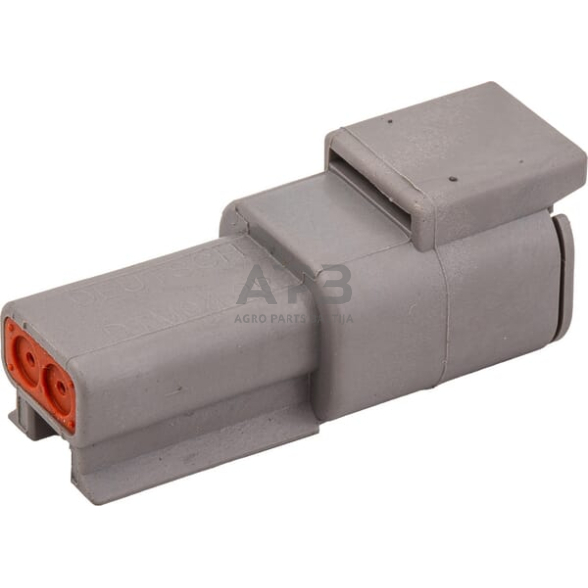

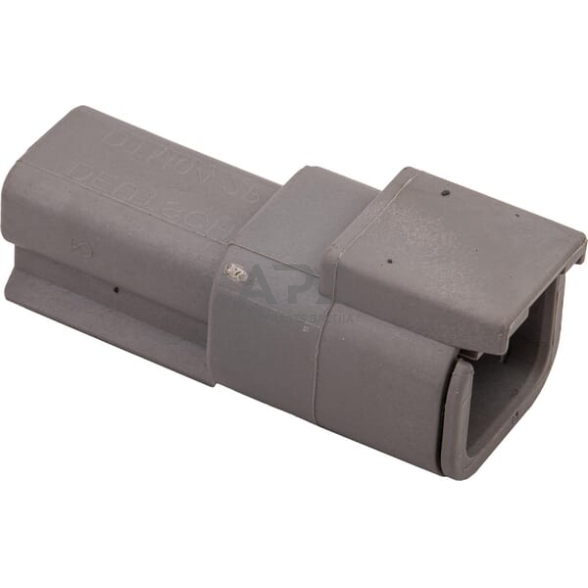

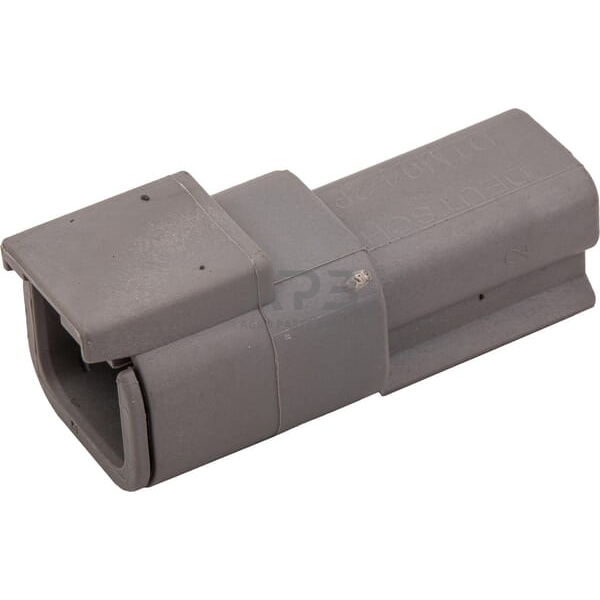

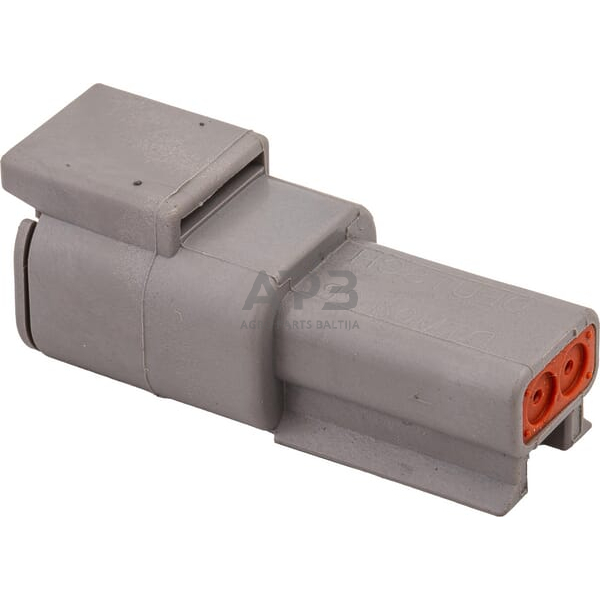

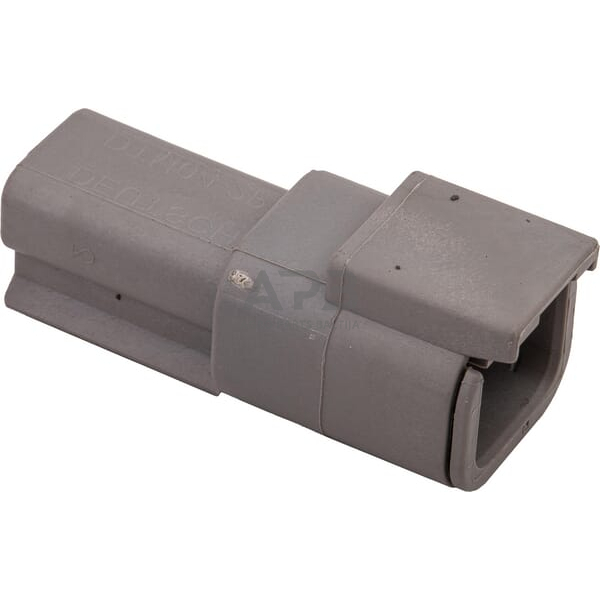

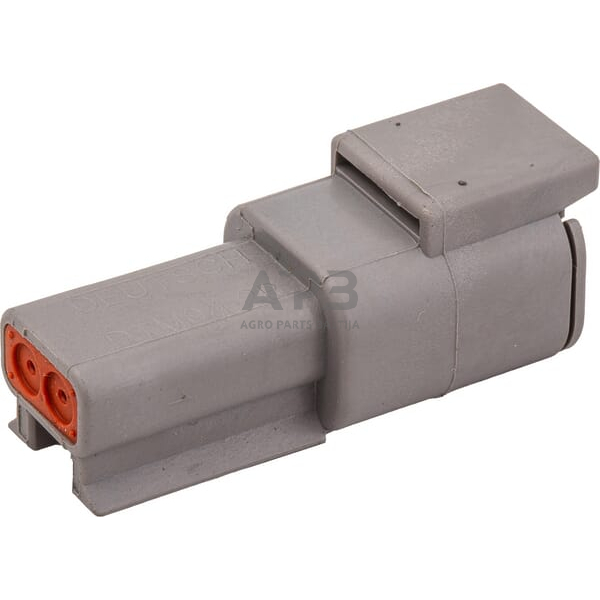

  • Kištuko korpusas Deutsch DSDTM042P

    Kodas: 853069

    Number of poles 2

  • Part number DSDTM042P
    EAN
    Unit Each
    Details Modular design
    Pros Modular design Easy to assemble Separate components Assemble plugs yourself
    Product Details Lighting For cables AWG 16 to 24 or 1.00mm² to 0.2mm² Thermoplastic housing Silicone seal Integrated cable seal Key type A grey, B black, C green or D brown 7.5 amps at 125°C constant load Pin size 20
    Application range On or in internal combustion engines, gearboxes and other heat-generating vehicle components Lights For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm²
    Properties Thermoplastic housing Silicone seal Integrated cable seal Encoding type A: grey, B: black, C: green, D: brown 7.5 ampere at 125°C continuous use Pin size: 20
    Benefits Easy mounting
    Min. cable cross section0.2 mm²
    Consists ofIndividual components Plug self-assembly
    Max. cable cross section1 mm²
    Connection type male/female - connection no 1 Female
    Number of poles 2
    Min working temperature -55 °C
    Max working temperature 125 °C
    DIN standard 40050
    Max voltage 1500 V
    Protection class IP6K9K 69
