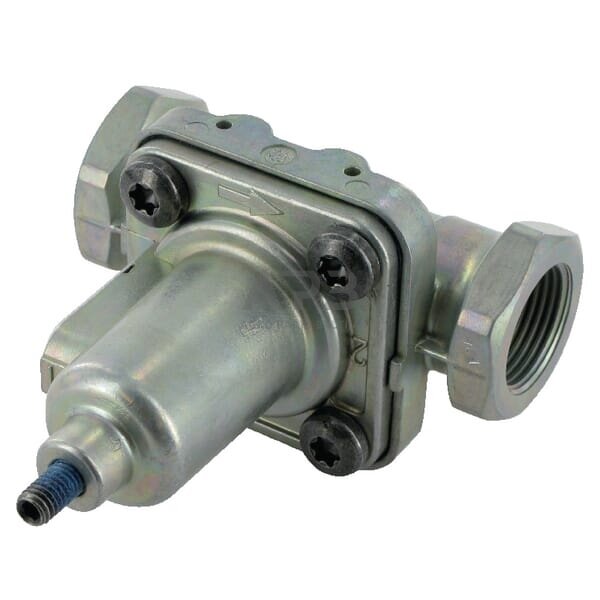

Įkrovimo vožtuvas Wabco 4341002280
Įkrovimo vožtuvas Wabco 4341002280
Kodas: 851847Kaina 147.72 € su PVMMax Working pressure 13 BAR
Pressure change 6.4 BAR
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22Prekiniam ženkluiWabco-
Part number 4341002280
EAN4057875176206
Unit Each
Application range Pressure relief Release the connecting piece for the compressed air to auxiliary consumers only after the brake system design pressure has been reached
Properties Pressure-relief valve without backflow Overpressure: 6.0 bar Adjustment range 5.3 ... 7.0 bar
Max Working pressure 13 BAR
Pressure change 6.4 BAR
Min working temperature -40 °C
Max working temperature 80 °C
Adjusting range 5.3-7.0 BAR
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22
Type With limited Return Flow Susijusios prekės
