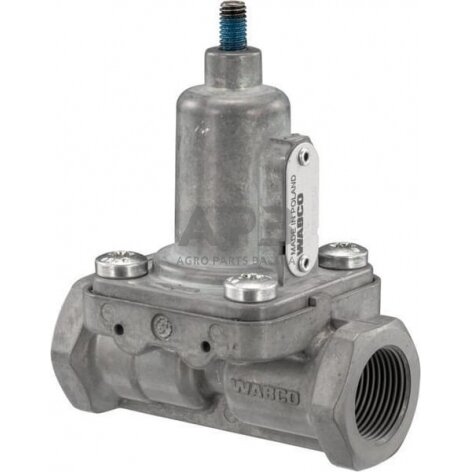

Įkrovimo vožtuvas Wabco 4341001300
Įkrovimo vožtuvas Wabco 4341001300
Kodas: 851848Kaina 152.57 € su PVMMax Working pressure 13 BAR
Pressure change 7 BAR
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22Prekiniam ženkluiWabco-
Part number 4341001300
EAN7895851072947
Unit Each
Application range Pressure relief Release the connecting piece for the compressed air to auxiliary consumers only after the brake system design pressure has been reached
Properties Pressure-relief valve without backflow Overpressure: 6.0 bar Adjustment range 5.3 ... 7.0 bar
Max Working pressure 13 BAR
Pressure change 7 BAR
Min working temperature -40 °C
Max working temperature 80 °C
Adjusting range 5.3-7.0 BAR
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22
Type Without Return Flow Susijusios prekės
Slėgio ribojimo vožtuvas Wabco 4341001390Kodas: 851849Max Working pressure 13 BAR
Pressure change 8.5 BAR
Nen. Width 8 mm
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22
157.95 € su PVM
Įkrovimo vožtuvas Wabco 4341002280Kodas: 851847Max Working pressure 13 BAR
Pressure change 6.4 BAR
Nominal diameter 8.0 mm
Thread pitch 1.5 mm
Thread M22
147.72 € su PVM
Slėgio ribojimo vožtuvas Wabco 4341001257Kodas: 851846Working pressure max. 13 BAR
Nen. Width 8 mm
Thread M22x1.5
61.44 € su PVM
Įkrovimo vožtuvas Wabco 4341002220Kodas: 851844Max Working pressure 13 BAR
Connection thread diameter M22
Connection thread pitch 1.50 mm
Nominal diameter 8.0 mm
343.91 € su PVM
