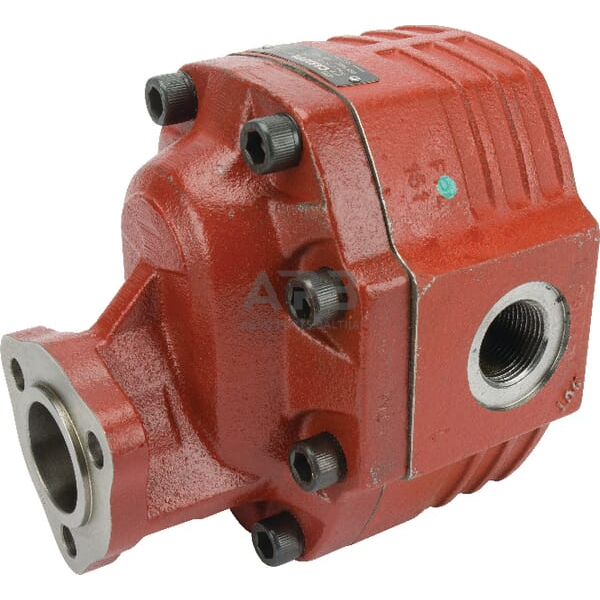

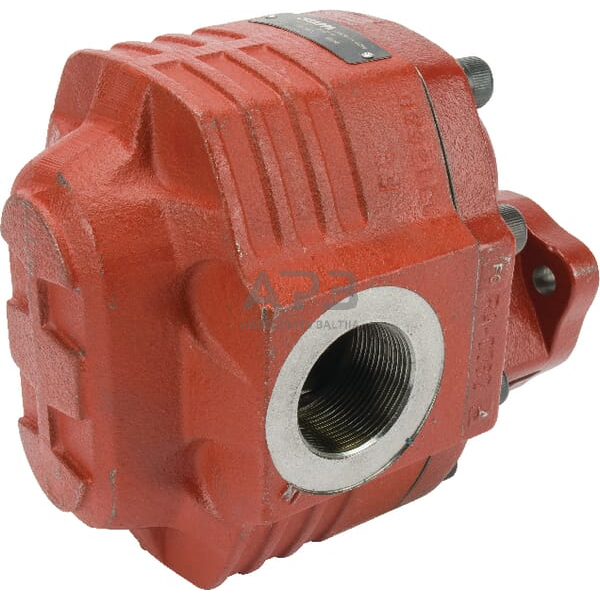

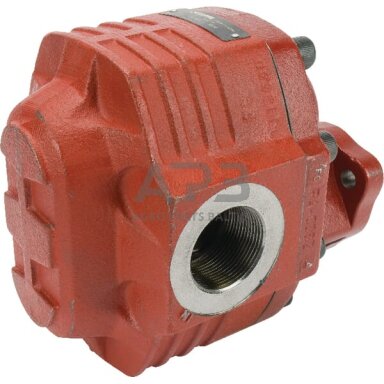

  • Hidraulinis siurblys Casappa FP40151S

    Kodas: 846242

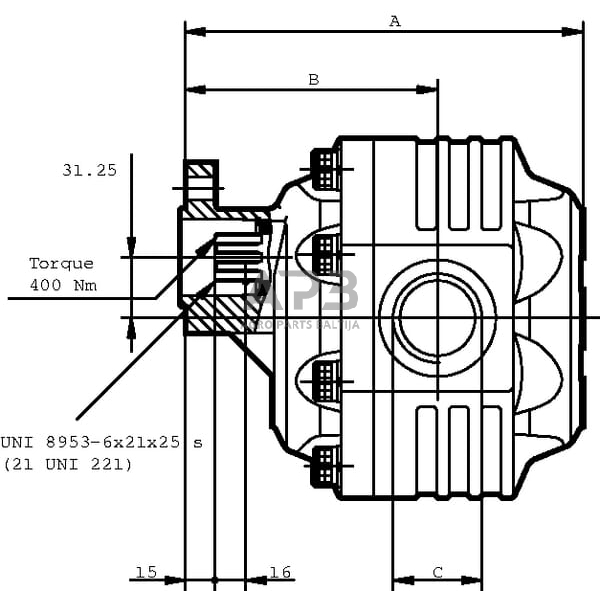

    A Housing length 219.5 mm
    B Connection port to flange distance 144.5 mm
  • Part number FP40151S
    EAN
    Unit Each
    Long description Formula 40
    Details High performance even at low speeds Can be mounted directly on the PTO shaft
    Properties Different connection positions Low noise emission Customer-specific design possible
    Benefits Wide range of applications Compact design
    Flange type norm n/a
    Flange code T1
    Shaft type Splined
    Shaft cone size code n/a

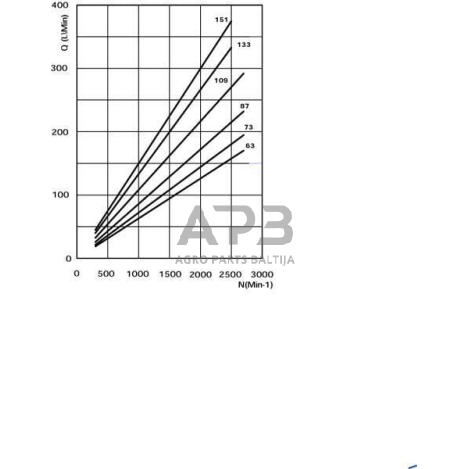

    Displacement 150.79 cm³/rev
    Sealing type Standard

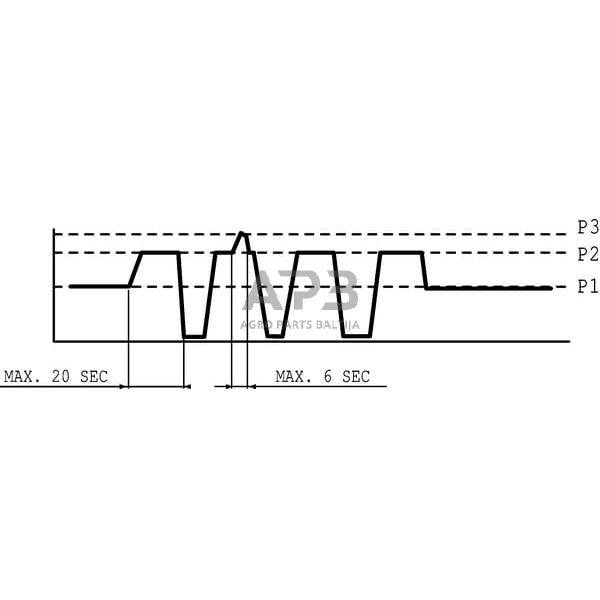

    Max. continous working pressure 180 BAR
    Max intermittend working pressure 210 BAR
    Max pressure peak 220 BAR
    Max rotation speed 2500 r/min
    Min rotation speed 300 r/min
    Prefered rotation direction Counter-clockwise (CCW)
    C Main port thread diameter 1 Inch
    Pressure port thread type G
    Pressure port thread diameter 1-1/2 Inch
    Port position Side
    A Housing length 219.5 mm
    Housing material Steel
    Flange and back cover material Steel
    B Connection port to flange distance 144.5 mm
