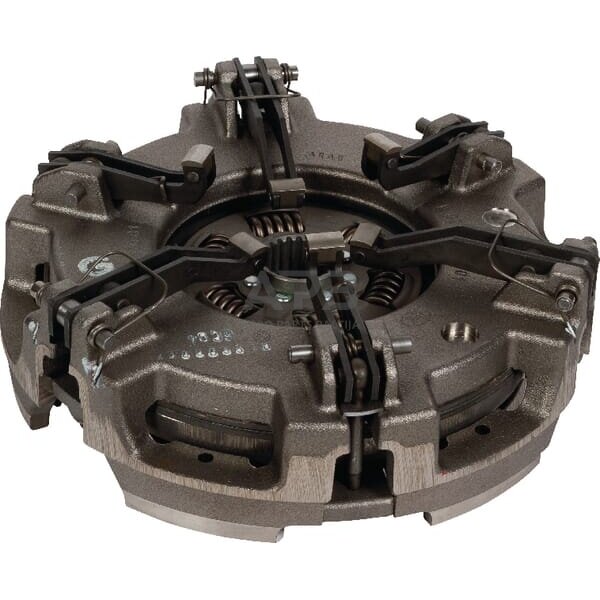

Part number 230003310
EAN
Unit Each
Technical info SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with Levers J = diaphragm clutch with Levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: Flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; Levers Y = twin plate clutch; coil spring; Levers with release plate Z = twin plate clutch; diaphragm spring; Levers ; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: Clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of Levers 3 = 3 Levers 6 = 6 Levers
LuK type code TGU 6
Levers Yes
Number of holes 12
OEM-Number 82224600
Number of springs 1
Outside diameter 300 mm / 280 mm
Suitable for Valmet
Type TGU6
